Self-Locking/Momentary vacuum Cleaner Rectangular Push Button Switch

Self-Locking/Momentary vacuum Cleaner Rectangular Push Button Switch

Short Description:

—Production Description— Item PS23-16-2C Function Push on /Push off   —Production Specification— Certificate CQC,TUV,KC,PSE Rated Load 16A 250V AC Contact Resistance 100MΩ Max Dielectric Intensity 1500VAC/ 5S for terminal and terminal. 3000VAC 5s for terminal and ground Withstand Voltage 1500VAC/min Operating Temperature -25~85°C Insulation Resistance 500VDC, 100MΩ Min Electrical Life ≥10,000 cycles Housing material PA66 Push Bu...


  • FOB Price: US $0.15~1.5/ Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 700000 Piece/Pieces per Month
  • Port: Ningbo or Shanghai
  • Payment Terms: TT/DP/western union/paypa
  • Product Detail

    Product Tags

    —Production Description—
    Item PS23-16-2C
    Function Push on /Push off
    —Production Specification—
    Certificate CQC,TUV,KC,PSE
    Rated Load 16A 250V AC
    Contact Resistance 100MΩ Max
    Dielectric Intensity 1500VAC/ 5S for terminal and terminal. 3000VAC 5s for terminal and ground
    Withstand Voltage 1500VAC/min
    Operating Temperature -25~85°C
    Insulation Resistance 500VDC, 100MΩ Min
    Electrical Life ≥10,000 cycles
    Housing material PA66
    Push Button PC
    -Production Material—
    Base plastic Nylon 66
    Button plastic PC
    Copper parts such as terminal Copper
    Terminal surface treatment Silver plating
    Contact Ag or Composite silver
    Spring Tungsten steel
    Cover plastic PC
    — Advantage —
    . CQC, TUV, K, RoHS approved
    . Used for home appliance and electronic equipments
    . Machining as you required
    . Custom made according your samples, drawings, pictures or photos

    –Production Display—

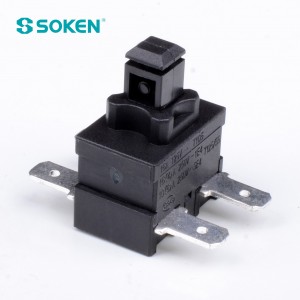

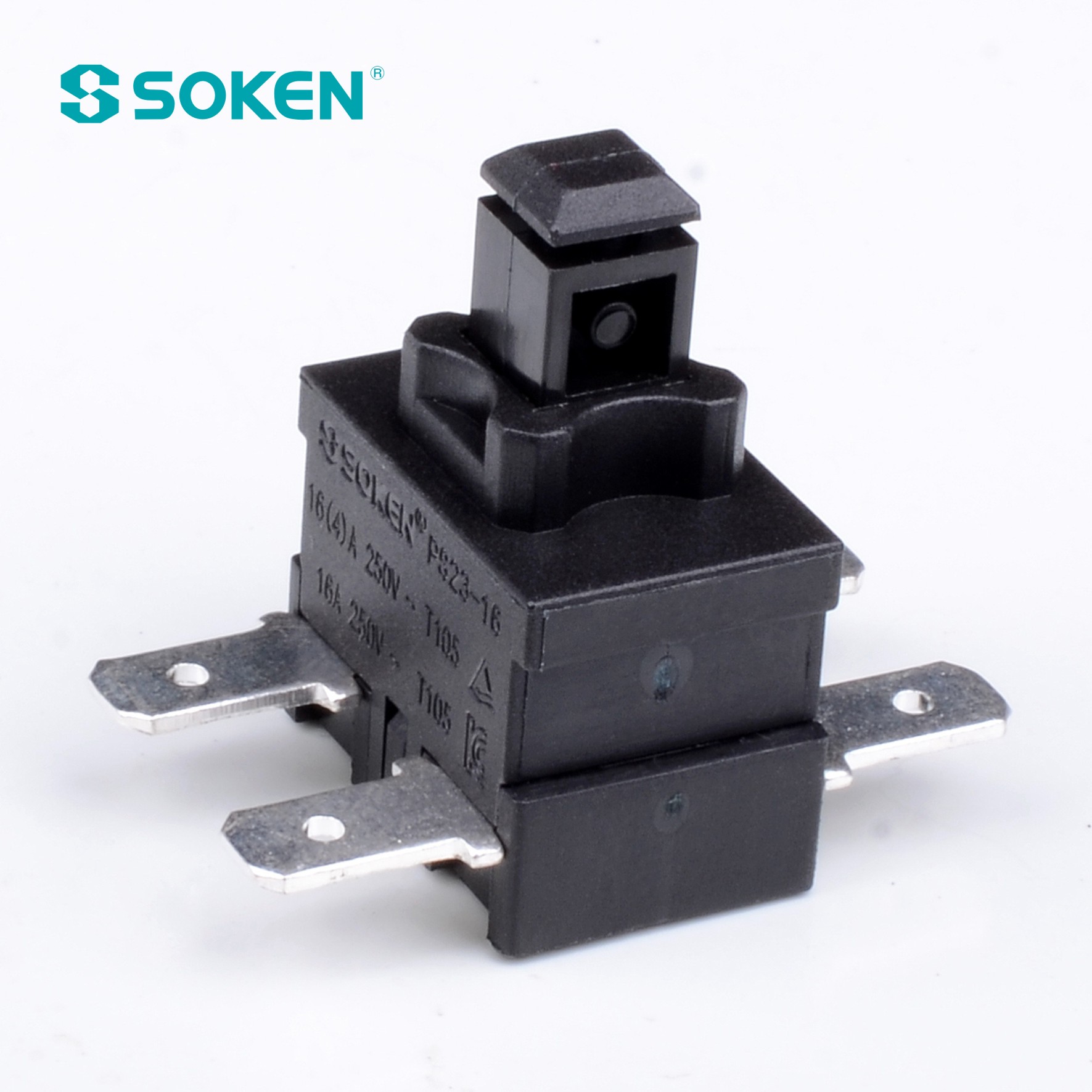

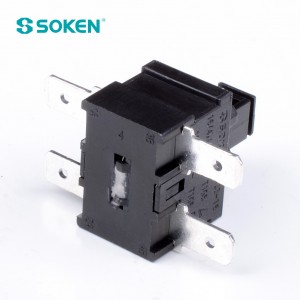

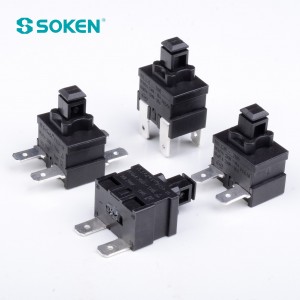

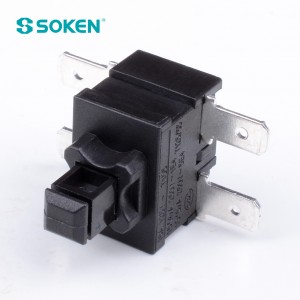

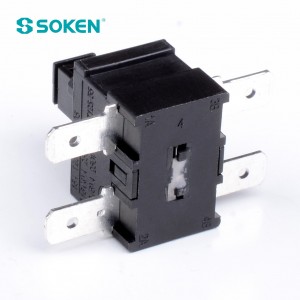

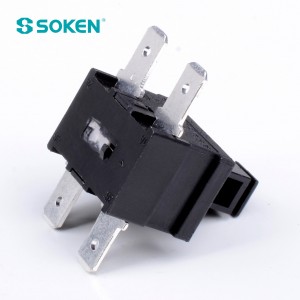

    ps23-b1 ps23-b2

    —Company Display—

    Ningbo Master Soken Electrical Co., Ltd. established in 1996, is a director member of Electrical Accessories and Appliance Controllers Branch of CEEIA. We are professional manufacturer engaged in the research, development, production, sale and service of various switches, including Rocker switches, Rotary switches, Push-button switches, Key switches, Indicator lights which are widely used in different fields such as Home Appliances industrial Facilities, Instruments and Meters, Communication Equipments, Fitness and Beauty Apparatus.

    Waterproof Round Light Push Button Switch
    Installation drawing
    Self-Locking/Momentary vacuum Cleaner Rectangular Push Button Switch

    –Why choose us—
    .  We specialize in this field more than 20 years,with good quality and pretty competitive price
    . Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs
    . Original manufacturer with direct factory price, Competitive & Fashionable
    . High management Standard for quality control
    . Small order acceptable: 1000pcs are welcome
    . Safe payment terms: T/T, Western Union, are available
    . Prompt Delivery & Lowest shipping cost : We can ship out within 30 days for general order
    . OEM available, Customers’ designs are warmly welcome

    —How to find us—

    Website:https://chinasoken.en.alibaba.com   or  www.chinasoken.com
    Sales: Mandy Xia
    Add:No.19 Zong Yan Rd.,Industry Zone,Xikou,Ningbo,China
